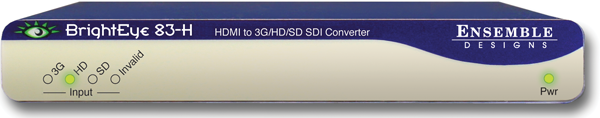

BrightEye 83-H HDMI to 3G / HD / SD SDI Converter with HDCP
- Guaranteed to work perfectly with your GoPro camera
- HDMI to SDI (3G/HD/SD formats supported)
- Use with Cameras and Other Sources that have an HDMI Output
- Passes Embedded Audio
- Supports HDCP Encrypted Content
Description

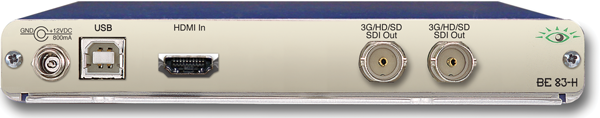

Convert HDMI to 3G/HD/SD SDI with the BrightEye 83-H. The output format follows the input, faithfully preserving the input’s resolution and frame rate. Perfect for GoPro, Replay and other video cameras and sources with an HDMI output, BrightEye 83-H presents the serial digital video signal on two BNC outputs.
Signal monitoring and control is provided through the included BrightEye Mac and BrightEye PC software.
Downloads
-
-
For software version 1.2.0
Specifications
Input
- Number One, supports HDCP encrypted content
- Type HDMI 1.3
- Format Supports HDMI signals which map to the video standards listed below
SDI Standards Supported
- 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
- 720p (SMPTE 296M -1,2,3) 50,59.94 or 60 Hz
- 1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
- 1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
- 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A
- 525i, 625i (SMPTE 259M)
Serial Digital Output
- Number Two, BNC
- Signal Type Follows input
- Impedance 75 Ω
- Return Loss >15 dB to 1.485 GHz >10 dB to 2.97 GHz
- Output DC None (AC coupled)
General Specifications
- Size 5.625” W x 0.8” H x 5.5” D(143 mm x 20 mm x 140 mm) including connectors
- Power 12 volts, 5 watts (100-230 VAC modular power supply)
- Temperature Range 0 to 40° C ambient (all specs met)
- Relative Humidity 0 to 95° non-condensing
