Description

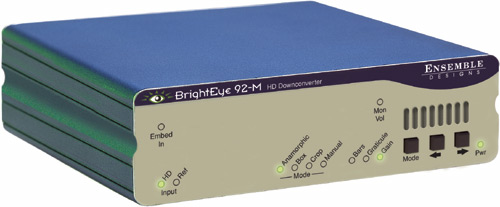

BrightEye 92-M will downconvert any type of HD signal and provides both an SD SDI output and an analog composite output that are suitable for broadcast or monitoring. The built-in Frame Synchronizer allows you to feed asynchronous signals to the BrightEye 92-M. An external reference input allows genlock to a house reference.

All vertical interval data and closed captioning is faithfully passed. Sixteen channels of embedded audio are supported. If the incoming video has embedded audio, the audio will be safely bypassed around the video processing and lipsync will be preserved.

Audio monitoring is easy with BrightEye 92-M’s convenient 3.5mm mini jack. Just select the audio channels you want to monitor from the front panel and plug in a headset.

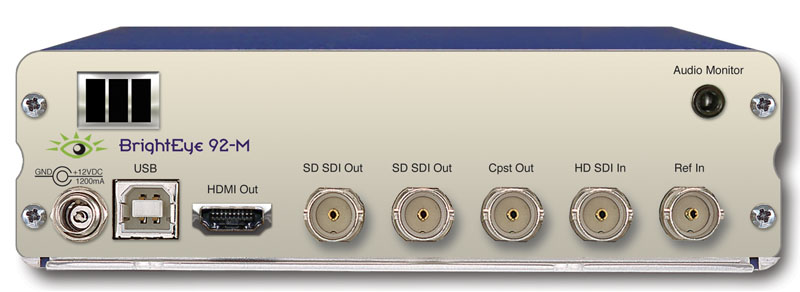

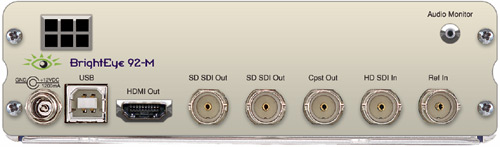

The HDMI connector on the rear of the unit provides a future proof monitoring interface. Plug it into most LCD monitors for confidence monitoring of your feed.

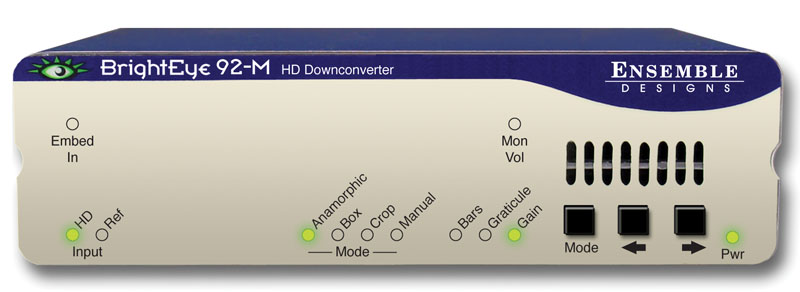

Input selection, gain control, and test pattern controls are provided through the front panel interface. Audio presence LEDs indicate which channels are detected. Controls for crop, letterbox and pillarbox are accessed from the front panel or BrightEye Mac or PC software.

BrightEye 92-M Specifications

Serial Digital Input

• Number: One
• Signal Type: 1.485Gb/s HD Serial Digital (SMPTE 274M or 296M)
• Impedance: 75 Ω
• Return Loss: >15dB
• Max Cable Length: 100 meters

Reference Input

• Number: One
• Type: 1 V p-p Composite Video, PAL or NTSC, or Tri-Level Sync
• Impedance: 75 Ω
• Return Loss: >40 dB

Analog Video Output

• Number: One
• Type: Composite PAL or NTSC
• Return Loss: >40 dB
• Output DC: < 100 mV

Serial Digital Output

• Number: Two
• Type: SD Serial Digital 270Mb/s (SMPTE 259M-C)
• Processing: 12 and 16 bit
• Impedance: 75 Ω
• Return Loss: >15 dB
• Max Cable Length: 300 Meters
• HD Standards Supported:
  • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
  • 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
  • 1080p (SMPTE 274M -9,10,11) 23.98,24, 25 Hz
  • 1080sF (RP211 -14,15,16) 23.98, 24, 25Hz

Monitor Output

• Number: One
• Connectorization: HDMI

Audio Monitoring Output

• Number: One (Select from eight channels)
• Connectorization: 3.5mm stereo mini jack

General Specifications

• Size: 5.625” W x 1.7” H x 5.5” D (143 mm x 40 mm x 140 mm) including connectors
• Power: 12 volts, 7 watts (100-230 VAC modular power supply)
• Temperature Range: 0 to 40˚ C ambient
• Relative Humidity: 0 to 95˚ non-condensing
