Description

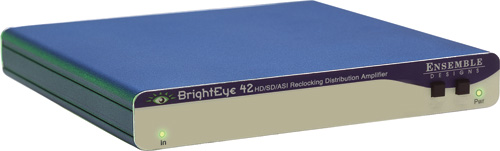

BrightEye 42 is a reclocking distribution amplifier that can be used with high definition, standard definition or ASI signals. When used with SD or ASI input signals, the serial input automatically equalizes up to 300 meters of digital cable. When used with an HD input signal, the serial input automatically equalizes up to 100 meters of digital cable. The equalized signal is reclocked and delivered to four simultaneous outputs. The reclocker is ASI compliant and all four outputs have the correct ASI polarity.
This is a simple device with no USB port and no interface for BrightEye Mac or PC software. Front panel indicators show the presence of an input signal and power.
Downloads
Specifications
Serial Digital Input
- Number: One
- Signal Type:
270 Mb/s SD Serial Digital (SMPTE 259M)
1.485 Gb/s HD Serial Digital (SMPTE 274M or 296M) - Impedance: 75 Ω
- Return Loss: >15 dB
- Max Cable Length:
300 meters for 270 Mb/s
100 meters for 1.485 Gb/s - Automatic Input Cable Equalization
Serial Digital Output
- Number: Four
- Signal Type: HD/SD/ASI Serial Digital (SMPTE 259M or SMPTE 274M, 292M or 296M), follows input
- Impedance: 75 Ω
- Return Loss: >15 dB
- Output: DC None (AC coupled)
General Specifications
- Size: 5.625" W x 0.8” H x 5.5" D (143 mm x 20 mm x 140 mm) including connectors
- Power: 12 volts, 2 watts (100-230 VAC modular power supply)
- Temperature Range: 0 to 40° C ambient
- Relative Humidity: 0 to 95° non-condensing
